Home 1991 Buick Reatta Base 3.8L V6 - Gas Headlamp Components

Headlamp Components for 1991 Buick Reatta

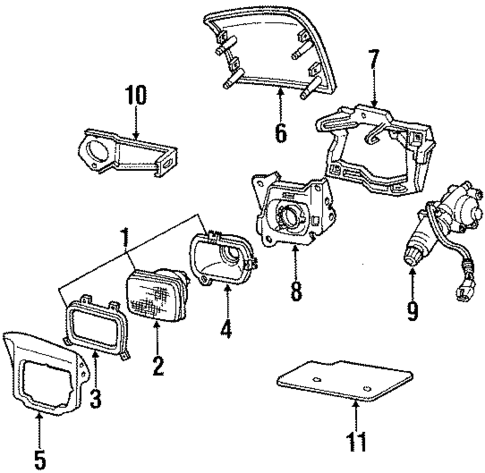

Headlamp Components for 1991 Buick Reatta #0

Headlamp Components for 1991 Buick Reatta #0

1

1

10

10

11

11

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

No.

Part # / Description / Price

Price

1

16507177 - Electrical: Headlamp Assembly for Buick: Reatta Image

Headlamp Assembly

GM

Positions: Left

2

5972698 - Electrical: Sealed Beam for Buick: Electra, LeSabre, Reatta, Riviera, Skylark | Cadillac: DeVille, Escalade, Fleetwood | Chevrolet: Astro, Blazer, C/K Pickup, C1500, C2500, C3500, C3500HD, Camaro, Caprice, Chevette, Citation II, Colorado, Corvette, G10, G20, G30, Impala, K1500 Pickup, K2500 Pickup, K3500 Pickup, K5 Blazer, P20, P30, R10, R20, R2500, R30, R3500, S10, S10 Blazer, Spectrum, Suburban C10, Suburban C1500, Suburban C20, Suburban C2500, Suburban K10, Suburban K1500, Suburban K20, Suburban K2500, Suburban R10, Suburban R1500, Suburban R20, Suburban R2500, Suburban V10, Suburban V1500, Suburban V20, Suburban V2500, Tahoe, V10, V20, V30, V3500 | GMC: C1500 Pickup, C2500 Pickup, C3500 Pickup, C3500HD, Canyon, G1500, G2500, G3500, Jimmy, Jimmy S15, K1500 Pickup, K2500 Pickup, K3500 Pickup, P2500, P3500, R1500 Pickup, R2500 Pickup, R3500 Pickup, S15, Safari, Sonoma, Suburban C1500, Suburban C2500, Suburban K1500, Suburban K2500, Suburban R1500, Suburban R2500, Syclone, Typhoon, V1500, V1500 Suburban, V2500, V2500 Suburban, V3500, Yukon | Oldsmobile: 98, Bravada, Custom Cruiser, Delta 88, Omega | Pontiac: Fiero, Firebird, Parisienne, Phoenix, Safari, T1000 Image

Sealed Beam

GM

Positions: Right

3

16507178 - Electrical: Sealed Beam Retainer Ring for Buick: Reatta Image

Sealed Beam Retainer Ring

GM

4

16507179 - Electrical: Sealed Beam Mount Ring for Buick: Reatta Image

Sealed Beam Mount Ring

GM

5

16507187 - Electrical: Bezel for Buick: Reatta Image

Bezel

GM

Positions: Left

5

16507188 - Electrical: Bezel for Buick: Reatta Image

Bezel

GM

Positions: Right

6

16507183 - Electrical: Cover for Buick: Reatta Image

Cover

GM

Positions: Left

6

16507184 - Electrical: Cover for Buick: Reatta Image

Cover

GM

Positions: Right

7

16508591 - Electrical: Cover Bracket for Buick: Reatta Image

Cover Bracket

GM

Positions: Right

Notes: PARTS: Does not include mounting bolt.

7

16508592 - Electrical: Cover Bracket for Buick: Reatta Image

Cover Bracket

GM

Positions: Left

Notes: PARTS: Does not include mounting bolt.

8

16510109 - Electrical: Housing for Buick: Reatta Image

Housing

GM

Positions: Left

8

16510110 - Electrical: Housing for Buick: Reatta Image

Housing

GM

Positions: Right

9

16507164 - Electrical: Motor for Buick: Reatta, Riviera Image

Actuator Motor

GM

Positions: Right

Description: Buick. Right.

9

19207439 - Electrical: Motor for Buick: Reatta, Riviera Image

Actuator Motor

GM

Positions: Left

Description: Buick. Left.

10

1636667 - Electrical: Linkage Support for Buick: Reatta Image

Linkage Support

GM

Positions: Left

10

1636666 - Electrical: Linkage Support for Buick: Reatta Image

Linkage Support

GM

Positions: Right

11

1636656 - Electrical: Cover Shield for Buick: Reatta Image

Cover Shield

GM

Related Parts

Part # / Description / Price

Price

16506765 - Electrical: Composite Assembly for Buick: Reatta, Riviera Image

Composite Assembly

GM

Description: Buick. Left. Composite headlamps. Riviera.

16506766 - Electrical: Composite Assembly for Buick: Reatta, Riviera Image

Composite Assembly

GM

Description: Buick. Right. Composite headlamps. Riviera.

16507783 - Electrical: Composite Headlamp for Buick: Reatta, Riviera Image

Composite Headlamp

GM

Description: Housing. Buick. Left.

16507784 - Electrical: Composite Headlamp for Buick: Reatta, Riviera Image

Composite Headlamp

GM

Description: Housing. Buick. Right.

16508143 - Electrical: Pivot Pin for Buick: Reatta Image

Pivot Pin

GM

16510108 - Electrical: Actuator for Buick: Reatta, Riviera Image

Actuator

GM

Description: Buick.

20351035 - Electrical: Cover Mount Bolt for Buick: Reatta | Chevrolet: Lumina, Monte Carlo | Pontiac: Firebird | Saturn: SC1, SC2, SL, SL1, SL2, SW1, SW2 Image

M3x1x25 Multi-Purpose Bolt

GM

Description: 1996-97 with appearance pkg. 3.8L. 3.1L. Trans am, 1998-02. 3.4L. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
